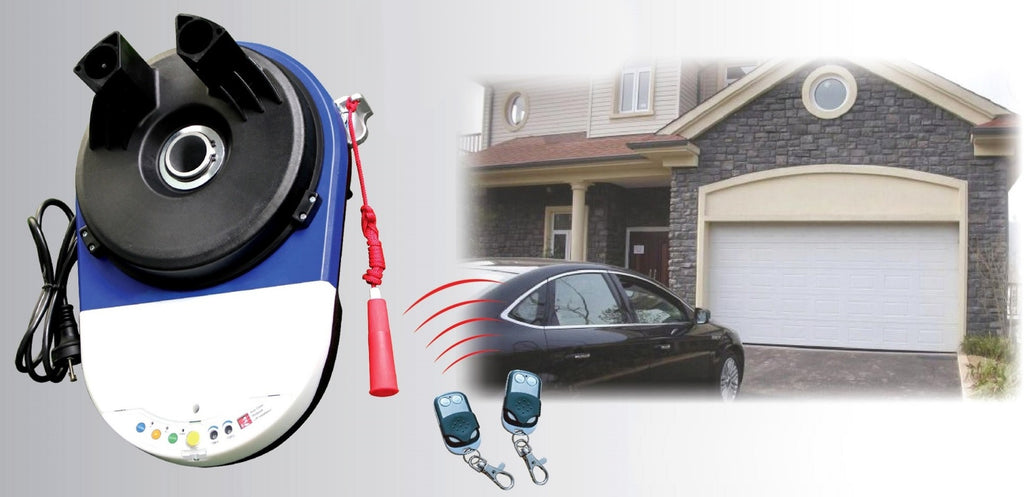

Automatic Garage Roller Door Motor - 500N Max

This 500N Max Automatic Garage Roller Door Opener Motor (with Auto Reverse / Stop) will easily convert your existing garage door to an automatic one.

This product is water resistant and especially designed for Australian style garage rolling doors.

Features:

• Quiet in operation,secure with rolling


• Slim design requires a minimum side space of 40mm


• Supports door sizes up to 4.5m high with a max door area of 16m²  - (up to 80kg Spring Balanced)

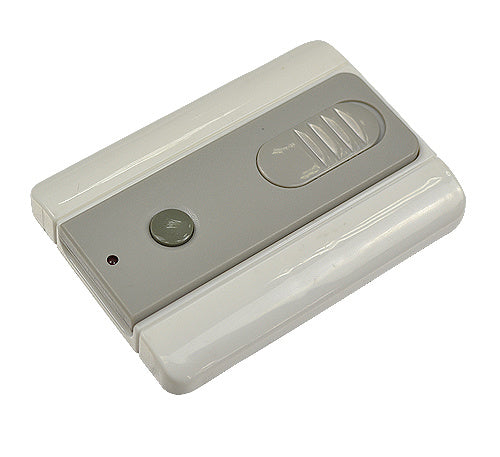

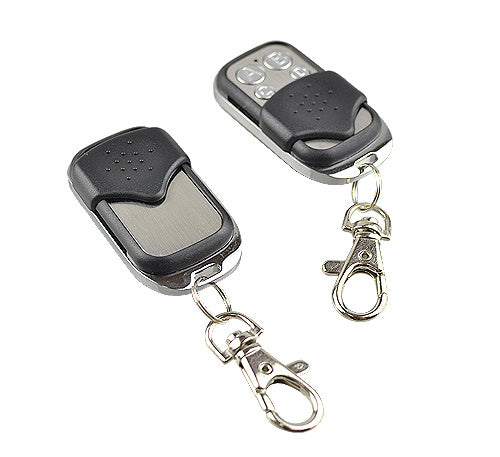

• Includes wireless door button + 2 x remote controls (as seen in the pictures)


• Soft Start and Soft Stop


• SMT PCB control system


• Over current protection


• Auto-Reverse / Stop Safety function in case of obstruction


• Built in adjustable auto-close (1-99 seconds)


• Built in Max. Motor running time for multiple safety protection (45 seconds)


• Double disengage device for easy manual and auto operation


• Removable drum fork


• Rolling code remote control

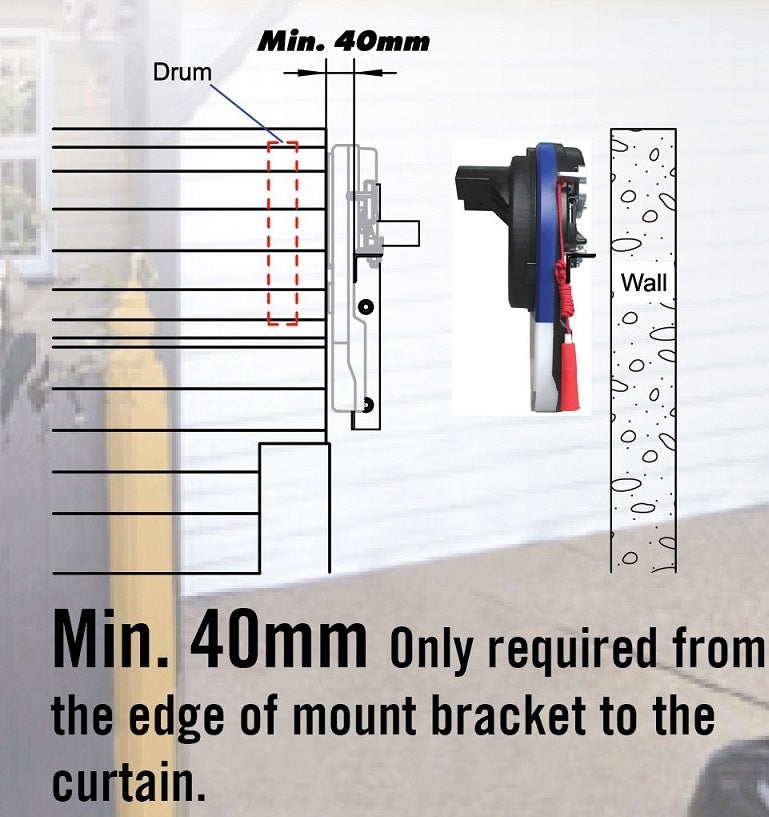

• Distance between curtain and bracket: Min 40mm

Specifications:

• 230V, 50Hz


• Power: 120V A


• Lift Force Max: 500N


• Protection Grade: IP53


• Max Door Height: 4.5m


• Max Door Area: 16m


• Built-in Max Running Time: 45 seconds


• Max Travel: 5 turns of drum


• Auto close time: adjustable from 1-99 seconds


• Weight: 5kg

* Model Code: HUH-AP

Please Note:

1.  Only the roller door mechanism and associated remotes & wireless door button included. Actual garage door is NOT included


2. Assembly must be done by a licensed Electrician.

Package Content:

1 x Automatic Garage Roller Door Motor - 500N Max
